ATRAS

  YOUR SOLUTION FOR THE SAMPLE RECEPTION
AREA AND PREANALYTICS

References

BIOSCIENTIA Labor Karlsruhe
Amedes
Advantages

OPTIMIZE YOUR SAMPLE RECEPTION AREA AND WORKFLOWS

With the help of ATRAS you can make your laboratory processes more efficient and increase your process reliability in preanalytics.

SIMPLE

After arrival in the laboratory, the sample tubes are simply loaded into the hopper of the ATRAS.

Afterwards, the tubes are separated, registered, and sorted into the appropriate bins or racks.

The simple handling of the ATRAS and the automated sample registration considerably reduces the workload of the staff.

FLEXIBLE

The modular design of the ATRAS enables a flexible adaptation to the laboratory processes as required.

Bulk and rack modules can be combined arbitrarily in one system.

The sorting rules can be setup according to the individual workflow requirements of the laboratory.

In addition to the registration of samples, the ATRAS optimizes subsequent processes through intelligent presorting, such as processes in the hematology.

RELIABLE

The precise and reliable handling of sample tubes of the ATRAS generates a high throughput.

A plausibility check through the detection of the tube type and the comparison with the corresponding material identification improves the process assurance. Incorrect samples are detected early and sorted out before they enter the analytical process.

Due to the early time stamp at sample receipt the tubes can be traced back through the entire laboratory process.

YouTube

By loading the video, you accept YouTube's privacy policy.
More information

Load Video

IMPROVE YOUR PROCESS QUALITY AND TURN-AROUND TIMES BY OPTIMIZING YOUR WORKFLOWS

All sample tubes are registered in real time. Samples in question (SIQ) are detected and sorted out early. This is done quickly and reliably so that the staff are relieved of manual tasks.

APPROXIMATELY

SAMPLES PER HOUR

MORE THAN

SYSTEMS INSTALLED

MORE THAN

% Uptime

Features

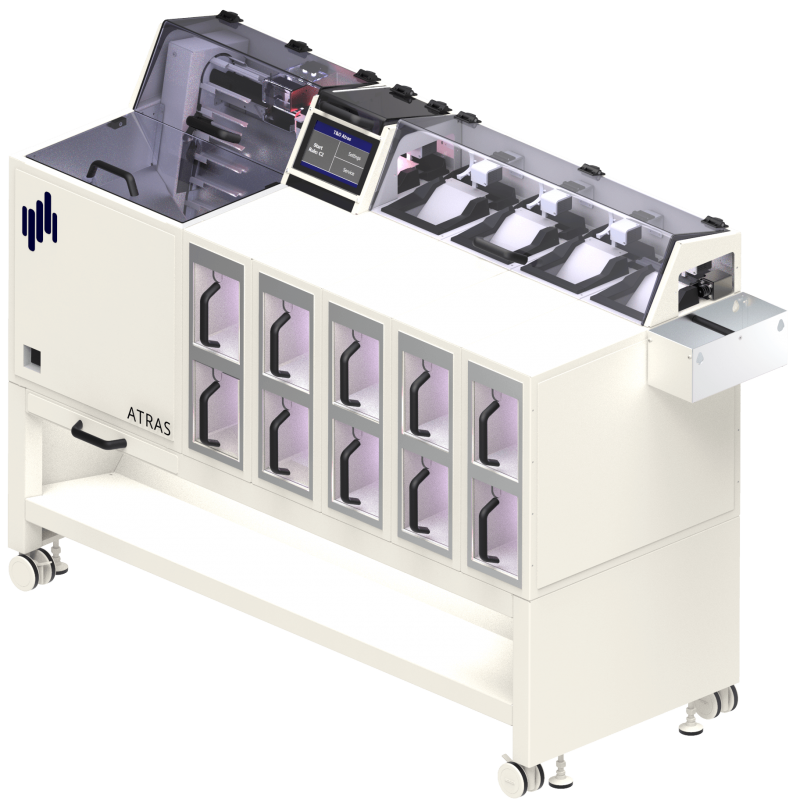

LEARN ABOUT THE 4th ATRAS GENERATION

The ATRAS offers bulk loading and sorting for a cost effective optimization of the sample reception area and other work areas. Each ATRAS is characterized by a clear structure, intuitive, easy to use operation and low maintenance. As a modular system, the ATRAS offers 26 configurations, thus providing fully customized solutions for individual workflows.

  • Continuous loading of samples in bulk
  • Loading of STAT samples
  • Registration of samples
  • Identification of tube dimension
  • Cap color identification with CapIdent
  • Sorting of samples to bulk and into racks or centrifuge buckets
  • Connection of intelligent transportation system InTrac to ATRAS
  • Easy setup of sorting rules and tube types for cap color identification
  • Touchscreen with intuitive user interface for easy and simple operations
  • Bi-directional LIS connection
  • Archiving of closed sample tubes

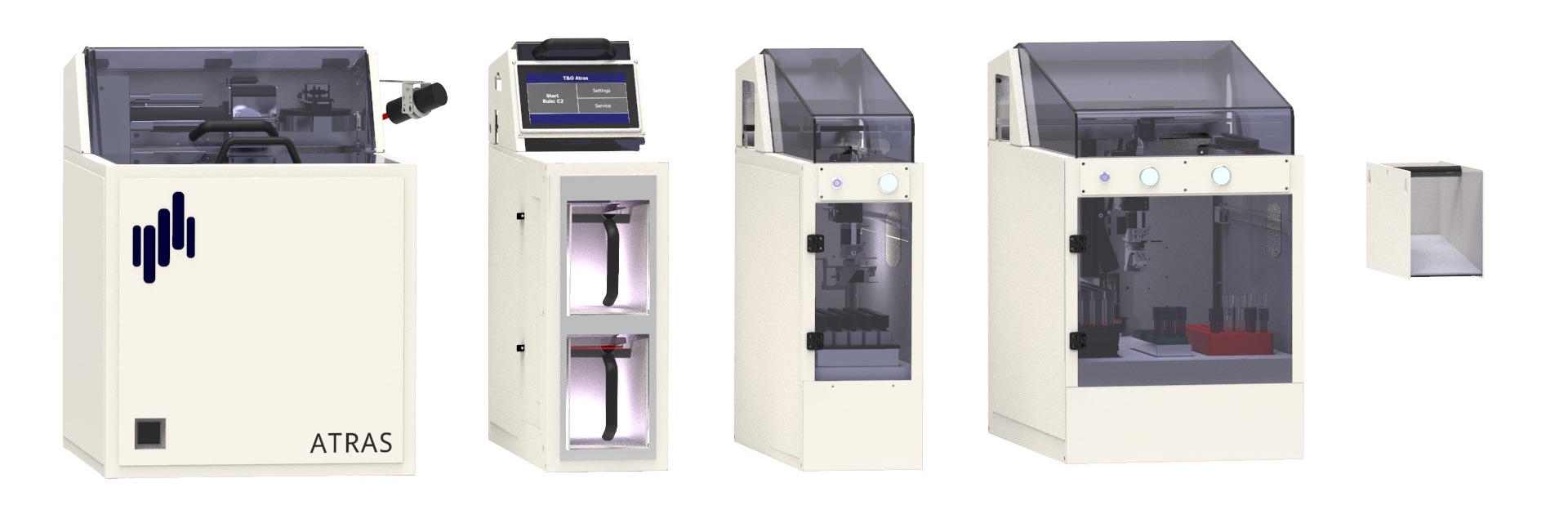

EXPERIENCE THE EXTENSIVE MODULARITY

ATRAS InTrac Inlet

InTrac Inlet

After unpacking, closed sample tubes are simply placed on InTrac and transported to the ATRAS for registration and sorting.

  • Simple handling
  • Continuos feeding of ATRAS for an early time stamp
  • Continuous sample flow starting at the sample reception
  • Reduction of walking distances
ATRAS Base Unit

Base Unit

Manually or via an InTrac Inlet, samples can be loaded continuously into the spacious hopper of the ATRAS. An integrated pane ensures a registration according to the FIFO concept.

  • Capacity of up to 700 tubes
  • Loading of STAT samples
  • Registration of samples
  • Identification of tube dimension via a high performance barcode scanner
  • Highly reliable cap color identification with CapIdent due to in-house developed spectrometer
  • Continuous loading of samples
  • Status LED for a fast and easy visual check of the operational status
  • Touchscreen with intuitive user interface for easy and simple operations
ATRAS Bulk Output

Bulk Output

After registration, samples are sorted into defined target bins as bulk. Sorting is based on costumer-defined rules using cap-color and/or barcode information or LIS-transmitted rules.

  • Each bin has a capacity of up to 200 tubes
  • Removal of bins at any time possible while ATRAS keeps on running
  • Number of tubes is counted for each bin
  • Light barriers protect bins against over filling
  • Wipers gently guide tubes into target bin
ATRAS Bulk Output

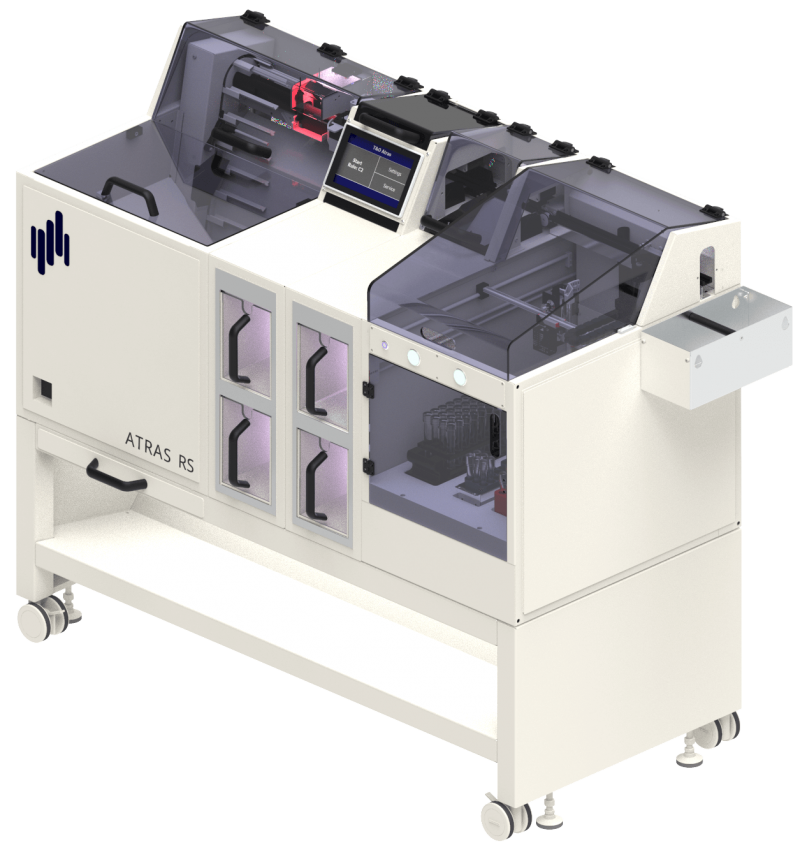

ATRAS Rack & Bulk Output

Rack & Bulk Output

Registered samples are sorted into costumer-defined racks or centrifuge buckets on a small footprint. In addition, this module comes with three target bins for sorting of tubes as bulk.

  • High throughput of more than 1,000 tubes/hr for tubes sorted into racks
  • Each module is equipped with a display for easy operation and status overview
  • Easy access of all racks independent from their position in the rack area due to the new drawer
  • Result record after final tube placement in rack
  • Specific LOG for each RS2 Rack & Bulk Output module
  • Barcode alignment of tubes within a rack
  • Easy serviceability
ATRAS SIQ Bin

SIQ bin

Samples in question (SIQ) are sorted into the external SIQ bin. The samples can be picked up easily for further investigations. The SIQ bin is removed when using the InTrac Outlet connection. In this case, samples in question are routed to a defined bulk target bin instead.

ATRAS SIQ Bin
ATRAS InTrac Outlet

InTrac Outlet

After registration, closed sample tubes are transported to the following work area in the laboratory or to another ATRAS for further processing.

  • Continuous sample flow to the next work area
  • Reduction of walking distances
  • Connectivity to other ATRAS systems
  • Barrier-free distribution of tubes throughout the whole laboratory
  • Overcoming of height differences

Selected features and highlights



Spin Check – New ATRAS feature

Spin Check – New ATRAS feature

Experience seamless and efficient laboratory workflow with the latest feature from ATRAS series. Through close collaboration with our customers, we have developed Spin Check - the detection und sorting of samples by centrifugation status. The ATRAS detects whether a...

Handle urgent samples with ATRAS

Handle urgent samples with ATRAS

Challange: Urgent samples have to be registered and sorted promptly so that they can be fed directly to subsequent processes. Solution: Urgent samples are loaded into a separate input to prioritize their processing. Operation is very simple thanks to the status...

Piston detection – New ATRAS feature

Piston detection – New ATRAS feature

Say goodbye to damaged automation needles and interrupted lab workflow with the new ATRAS series feature. Working closely with our customers, we remain dedicated to advancing the development of the ATRAS system. Based on this feedback, we have launched a new feature:...

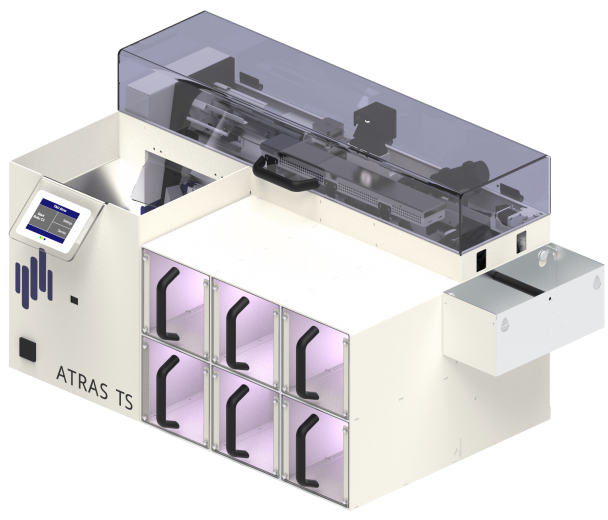

ATRAS TS

REGISTRATION AND SORTING of tubes FOR SMALL LABORATORIES

With the ATRAS TS you can automate the sample reception area of your laboratory on a very small footprint. The automated registration and sorting of sample tubes by means of barcode and cap color increases process reliability and reduces turn-around times (TAT). The ATRAS TS offers simple, flexible, and reliable operations.

  • Compact design, low space requirement
  • Simple and intuitive operation
  • Throughput: approx. 1500 samples/h
  • All common sample tubes
  • Cap color detection
  • Connection to your laboratory software
  • 6 target bins + SIQ bin for samples in question
ATRAS TS
Areas of operation

Your Workflow – Your ATRAS

The ATRAS family, together with the intelligent transportation system InTrac, can be used in a number of different scenarios. In each scenario, the solutions from T&O LabSystems provide significant workflow improvements, thus reducing time and enhancing efficiency and process quality. Some scenarios are displayed below in more detail.



Automated registration and sorting

Automated registration and sorting

The ATRAS optimizes the processes in the sample reception area efficient and cost-effective. Sample tubes are loaded in bulk and are promptly registered and sorted by means of their barcode and cap color into target bins.

  • Throughput: approx. 3,000 samples/h
  • All common sample tubes
  • Avoidance of manual errors
  • Early time stamp
Configurable registration and sorting

Configurable registration and sorting

The combination of sorting to bulk and racks, together with the connectivity of InTrac provides a high degree of automation on a small footprint.

  • Optimization of subsequent processes
  • Sorting into customer-specific racks and centrifuge buckets
  • Continuous distribution of tubes via InTrac to the next work area
Compact registration and sorting

Compact registration and sorting

The ATRAS TS organizes the sample reception area on a footprint of only 0.4 m².

  • Automated registration and sorting of all common sample tubes as bulk
  • Continuous loading of the ATRAS TS by InTrac Inlet (available soon)
Process optimization of individual work areas - example hematology

Process optimization of individual work areas – hematology example

The ATRAS optimizes the workflow in the hematology area by sub-distribution of samples.

  • Sorting into costumer-specific racks
  • Workflow optimization
  • Continuous loading of ATRAS by InTrac Inlet

At a glance

ATRAS PRODUCT FAMILY FROM T&O LABSYSTEMS

With the help of the ATRAS you can increase the efficiency of your laboratory and relieve your staff considerably. The safe and precise handling of laboratory samples of the ATRAS allows a constantly high sample throughput, which significantly reduces errors compared to manual sample registration and sorting. With the ATRAS, the tubes are registered without time delay and can be traced back in the laboratory’s IT system right from the start. Missing samples can also be detected at an early stage and additional requests can be ordered promptly.

Non-conform, errant samples are already sorted out before they enter the subsequent workflow processes. This increases process reliability, thus controlling the subsequent processes more efficiently. The modular design allows to design the ATRAS according to your laboratories needs and to integrate the ATRAS smoothly into your laboratory processes. The ATRAS offers a fully-fledged solution for the hematology / EDTA work area. Other work areas benefit from the ATRAS intelligent sorting.
